Safe Single - Side Climbing System / Climbing Formwork For Dams , Cooling Towers manufacturer from China CCCC FWK INTERNATIONAL FORMWORK CORPORATION

Safe Single - Side Climbing System / Climbing Formwork For Dams , Cooling Towers

Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: After deposit 15-20 days

Packing: Packaged stacking, assembly...

Detailed Product Description
Recycling
Single Side Climbing Formwork
Low Labour Cost

Safe Single - Side Climbing System / Climbing Formwork For Wall

Description:

With CMAX SCB180 climbing systems, the loads from the fresh concrete pressure are transferred through the brackets by means of V-strongbacks and compression braces into the scaffold anchors.

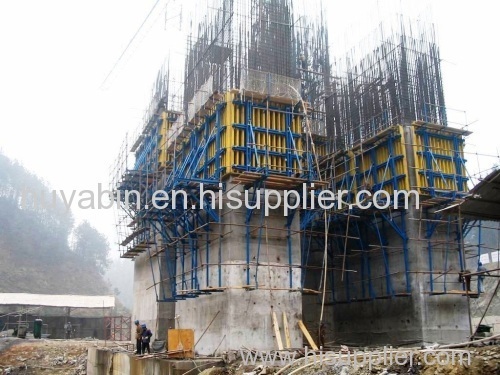

Typical applications for the SCB 180 system are dams, locks, cooling towers, pier heads, tunnels, and bank vaults.

The formwork is simply tilted backwards when striking takes place. The 1.80 m wide bracket requires only a minimum of space.

Competitive Advantage:

1. Economical and safe anchoring

The M30/D20 climbing cones have been designed especially for single-sided concreting using SCB180 in dam construction, and to allow the transfer of high tensile and shear forces into the still fresh, unreinforced concrete. Without wall-through tie-rods, finished concrete is perfect.

2. Stable and cost-effective for high loads.

Generous bracket spacing allow large-area formwork units with optimal utilization of the bearing capacity. This leads to extremely economical solutions.

3. Simple and flexible planning

With SCB180 single-sided climbing formwork, circular structures can also be concreted without undergoing any large planning process. Even use on inclined walls is feasible without any special measures because additional concrete loads or lifting forces can be safely transferred into the structure.

4. It is with the advantages of standard design, excellent applicability and interchangeable.
